Welded H Section Beam and Column Steel Structure Building Material

Welded H Section Beam and Column Steel Structure Building Material

Overview Product Description Prefabricated steel building is new kind of building system, which breaks through the indus
Basic Info
Model NO. BT410
Connection Form Bolt Connection
Member Steel Column
Type of Steel For Building Structure H-Section Steel
Carbon Structural Steel Q235
Residential Wall Structure Bottom Wall Beam
Application Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Name Construction Building,Prefabricated Building
Size as Customer Request
Steel Frame H Welded Section Steel or Steel Truss
Surface Treatment Painted or Galvanized
Cladding Corrugated Steel Sheet or Sandwich Panel
Accessories High Strength Bolt,Self Tapping Screw,etc
Covering Sheet Ridge Covering Sheet,Trim and Flashing,Gutter
Window Aluminum Alloy Window
Door Sliding Door,Roller up Door,etc
Transport Package Steel Pallet and Shipping in Container
Specification As customer request.
Origin Qingdao, China
HS Code 9406000090
Production Capacity 5000 Tons/Month
Product Description

Product Description

Prefabricated steel building is new kind of building system, which breaks through the industrial boundary among real estate industry, construction industry and metallurgy industry, and becomes a new industrial system, which is the steel structure building system that the insiders are generally optimistic about.

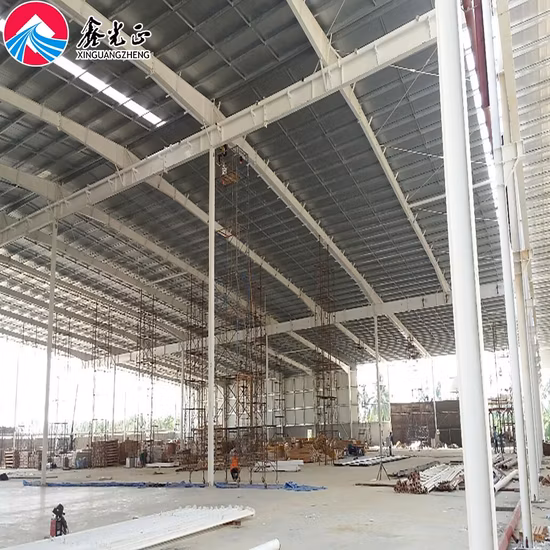

Prefabricated steel buildings are combined by steel structure frame, roof and wall steel cladding, aluminium windows & doors, etc. Steel structure frame refers steel columns, beams, tie bars, bracing, C/Z purlin, etc.

Design and drawing are done by our professional engineers.Customer just need to tell us the details and requirements,then we will issue a safe the economic solution by our expertise and experience.


Steel structure exhibition hall has the following advantages:

1. More saving on cost; Steel structure is lighter than traditional buildings material, which helps to reduce foundation size and material;

2. Shorter for installation time; Erection of steel structure building will be quicker as most of the steel members will be cutting and manufacturing the accurate size according to the drawing in factory and steel members are bolted together.

3. Good wind and earthquake resistance. Steel structure can be designed to resist stronger wind and earthquake.

Product Parameters

Steel structurePrimary frame element such as steel columns, steel beams and other members are made by hot-galvanized hot-rolled H section steels and welded section steel, which will be bolted together at site. A factory galvanization surface treatment is applied to get better anti-rusting and anticorrosion effect of primary framing elements.

Secondary Framing- Galvanized purlin, tie bar, roof and wall support, are formed as secondary framing.

Bracing- Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building.


Roof and Wall are covering of color-coated corrugated steel sheet, hot dipped with zinc and aluminum compound, which is fixed to the outside of structural building to protect it against bad weather or to have a good appearance.

Main Materials for steel structure building

H section column and beamQ345 steel, paint or galvanization
wind resistant columnQ345 steel,paint or galvanization


Secondary bracing
Roof purlinQ235B C/Z section galvanized steel
Wall purlinQ235B C/Z section galvanized steel
Tie barQ235,φ89*3 round steel pipe
knee braceangle steel,Q235,L50*4
roof horizontal bracingφ20,Q235B steel bar, paint or galvanized
column vertical bracingφ20,Q235B steel bar, paint or galvanized
casing pipeφ32*2.0,Q235 steel pipe
Pulling barΦ10 round bar Q235

Roof and wall protecting system
Wall and roof panelcorrugated steel sheet/sandwich panel
guttercolor steel sheet/galvanized steel/stainless steel
Trim and flashingcolor steel sheet
self tapping screw

Fastener system
Anchor boltsQ235 steel
High strength boltThe Specifications shall be determined according to the design of steel structure.
Normal bolt
Window and doorWindowAluminium windows
DoorAccording to requirement to choose,can be EPS door,windproof door,high-speed roll-up door,industrial sliding door ,glass door,etc.

Welded H Section Beam and Column Steel Structure Building Material

Fabrication Progress

We purchase the best quality raw material for fabrication,and provide you with picture information of all production links, from raw materials to steel processing, the whole process of visual production,with strict quality inspection.

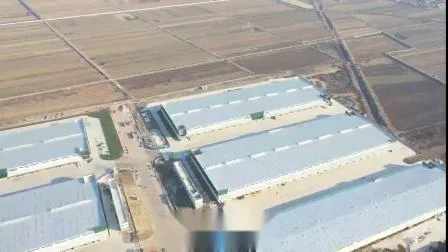

There are 6 factory areas for production.All workers have more than 10-year working experience,works will be completed far more efficient,quality and delivery time are available.

Full and advanced equipment:CNC laser cutting machine, vertical machining centers, CNC bending machines, NC drilling machine, CNC Continuous mode of production lines etc

Installation Instructions

Installation instruction and video will be provide.What's more ,we have our own construction team so that our engineers or skilled workers to your site for guidence, they will teach your people how to accomplish the construction.

Welded H Section Beam and Column Steel Structure Building Material

Packaging & Shipping

Here are the packaged products.All steel frame will be packaged by steel pallet,it will protect the surface paint or zinc of the steel structures.

All goods will be loaded in container for shipping.

Company ProfileWe were found in 1997 and listed on New OTC Market (stock code:834422) in 2015,located in Qingdao city,Shandong province,China.It is consist of over 20 subsidiaries ,6 main production factories and 2 farms. Xinguangzheng has became one of the leading steel structure building manufacturing company in China.After more than 20 years steady development,it has become a high-tech,diversified,outgoing and international private enterprise integrating design,manufacture,construction and service.Now, products and construction services have been exported to more than 80 countries in Asia, Africa, North and South America, Oceania, Europe, etc., and we have established joint ventures in India and Ethiopia, forming all-round strategic cooperation with customers in Philippines, Algeria and other countries.

Please kindly inform us informations as below if you are interested in our products ,then we design it.
1. Usage: what will it be used for ?2. location: In which country will be built?3. Local climate: Wind speed,Snow load (max. Wind speed)4. Dimension: Length*width*height5. Crane beam: Are there cranes inside the steel structure?
